ERC-DUO

Product no.: 9-0055

ERC-DUO is available at several distributors:

DE: Wimo: ERC-DUO USB-Interface f. Yaesu Rotoren
GB: ML&S: ERC-DUO USB-Interface f. Yaesu rotators
US: DX engineering: WiMo Antenennen und Electronik ERC-DUO WiMo ERC-DUO USB Interface for Yaesu Rotators | DX Engineering
US Vibroplex ERC-DUO
AU Comtek radio ERC-DUO

If you don't get it there, please order in our shop.

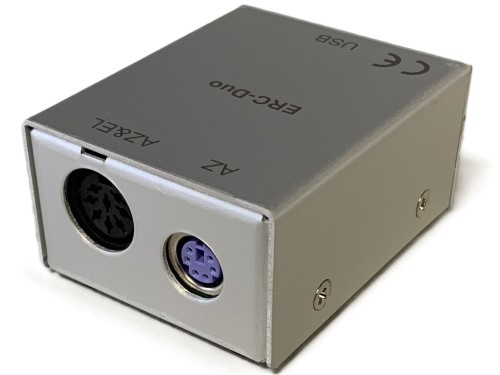

ERC-DUO was designed especially for the Yaesu DXA/DXC-series of azimuth rotators and Yaesu/Kenpro G/KR-5x00 series of azimuth&elevetaion rotators. It comes ready assembled and tested in an aluminium-enclosure. It will be connected to the Yaesu DXA/DXC control-box by an included Mini-DIN6 cable and to the the Yaesu/Kenpro G/KR-5x00 control-box by an optional DIN8-cable.
Also the Yaesu/Kenpro SDX-seeries can be connected to ERC-DUO by use of the optional ERC-DUO SDX-adapter.

Included with the ERC-DUO:

• Ready assembled and tested ERC-DUO with USB-interface in an aluminium-enclosure
• Mini-DIN6-cable for connection to the DXA/DXC-control-box
• USB-cable.
• Service-Tool (Windows XP/Vista/7/8/10/11 32 and 64bit) for configuration and calibration.
• Rotor-Control Software (Windows XP/Vista/7/8/10/11 32 and 64bit)

SPECIFICATION ERC-DUO

• Size of enclosure : 63mm x 50mm x 30mm
• Supply-voltage : 5 VDC through USB, max 10mA
• Operating-temperature : 0 to 70°
• Measuring-circuit for the rotator-feedback-voltage : 0 to +7V, Input-Impedance > 25 KOhm.
• Resolution : 10bit.
• Software-driven calibration with calibration-assistant.
• Security-stop, if the rotators doesn´t move
• Outputs-circuits :
  • 4 open-collector-outputs for CW, CCW, UP, DWN
  • 4-stage speed-control with DAC
• Communication-port:
  • USB with FTDI-chipse
  • Baudrate configurable 4800-9600 Baud
  • original and not modified drivers for Windows, Linux, MacOS by FTDI
• Controller with bootloader.
• ERC-DUO is compatible to a subset of the following protocols :
  • Hygain DCU-1 with extension for position-feedback
  • Yaesu GS232A
  • Yaesu GS232B
• Programs with which ERC-DUO has been checked successfully : see Software-guide
• Compatible rotators:
  • azimuth: Yaesu DXA/DXC-series G-800/1000/2800 DXA/DXC
  • azimuth: Yeasu/Kenpro SDX-series with optional ERC-DUO SDX-adapter
  • azimuth&elevation: Yaesu/Kenpro G/KR-5400/5500/5600 with DIN-8 connector with optional DIN8-cable
• Firmware supported features:
  • delay before rotator starts moving
  • antenna offset
  • support of overlap up to 180°
  • speed-function for AZ-rotator
  • tolerance of position
  • software-calibration
  • save and load of all calibration- and configuration-data
  • configuration and claibration also through API-interface
• More details are available in the instructions in the File-section below.

RoHS : ERC-DUO and the components used are according to the EG-directive 2002/95/EG to avoid usage of hazardous substances in electronic equipment.

Price:

119,00 EUR

19 % VAT incl. excl. Shipping costs
